arbitrary waveform generator

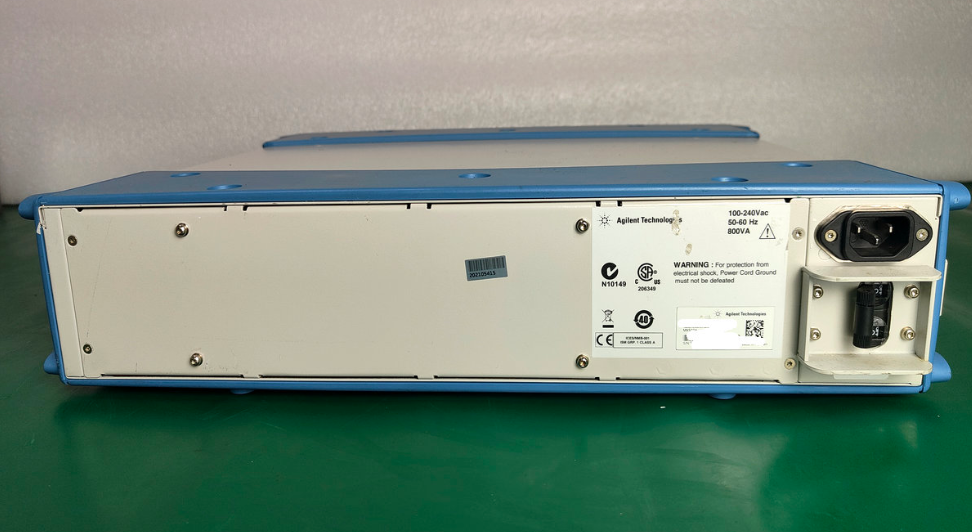

Key Features & BenefitsCompact and Portable Design: The 2-slot chassis is ideal for transportable applications and can also be rack-mounted. It is a 2U high form factor that minimizes rack space.High-Performance Backplane:Data Bandwidth: Provides up to 4 GB/s data rate from the system controller via a Gen 2 PCIe x8 interface. Each module slot has Gen 2 PCIe x4 links, providing a maximum 2 GB/s data rate.Local Bus: Implements the maximum 62 local bus pairs allowed by the AXIe specification for high-performance inter-module communication.Embedded System Module (ESM):The ESM is built-in and does not occupy an instrument slot.It performs all chassis management functions as defined by the AXIe specification.Provides Gigabit LAN and Gen 2 PCIe x8 interfaces for connecting to an external controller.High Power and Cooling:Provides high cooling capacity of up to 200W per slot to support high-performance modules.Total DC module power is 400W.Connectivity and Synchronization:Front panel connectors include: x8 Gen 2 PCIe, multi-frame in/out, trigger in/out, clock in/out, and GbE LAN.Includes exclusive inter-chassis synchronization connectors.Ease of Maintenance:Both the power supply and fan tray can be removed for maintenance while the chassis remains in the rack.Compatibility and Management:Fully compatible with the AXIe 1.0 specification.Includes a built-in web server for configuration, control, and monitoring of the chassis via LAN or PCIe.
