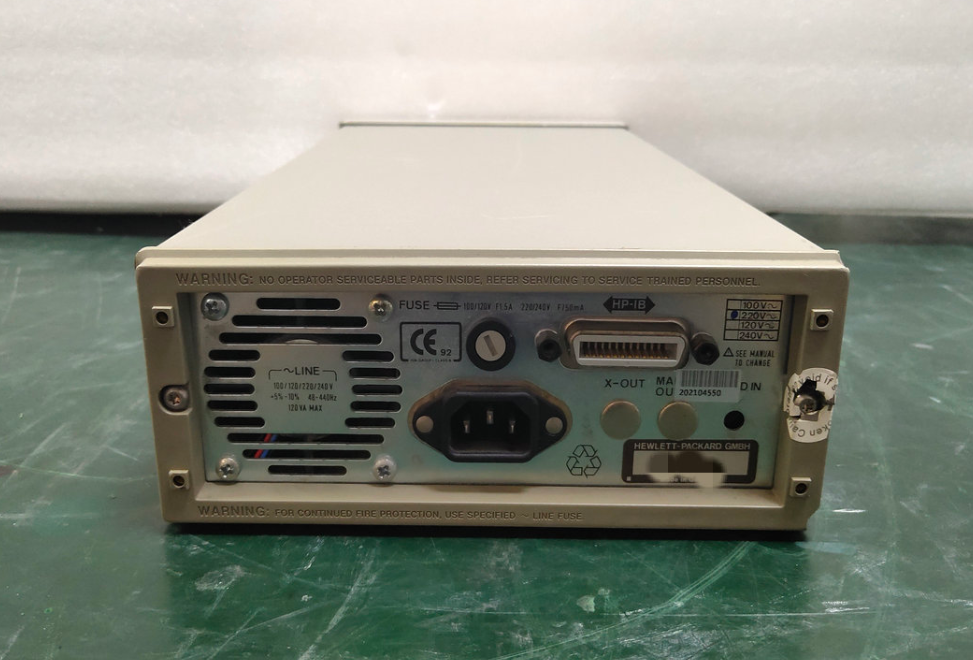

function signal generator

Key FeaturesDual functionality – Combines pulse generator and function generator capabilities in one compact, microprocessor-controlled unitWide frequency range – Operates from 1 mHz to 50 MHz for all waveformsMultiple waveform outputs – Supports sine, triangle, ramp, square, pulse, haversine, havertriangle, and DCVariable pulse width – Pulse width adjustable from 10.0 ns to 999 ms with 6 ns transitionsOutput amplitude – 10 mVpp to 16 Vpp into 50Ω for all waveformsOffset range – 0.00 to ±7.95 V, with selectable positive or negative polarityFrequency accuracy – ±3% (<100 kHz), ±5% (>100 kHz)Duty cycle – 10% to 90% variable below 2 MHzModulation capabilities – AM, FM, and Pulse Width ModulationSweep mode – Covers the full 1 mHz to 50 MHz band in a single up-sweepBurst mode – Preprogrammed number of cycles for any waveformAuto-vernier – Continuously increments parameters until a stop signal is applied, enabling automatic threshold measurementSafe limit – Protects devices by preventing output from exceeding a given magnitudeStandard interface – IEEE-488 (HP-IB)Output connector – BNC (female)ApplicationsDigital circuit testing and pulse simulationVCO, servo, and amplifier linearity testingTelephone line and vibration testing (haverfunctions)Automatic test systems
