channel selector

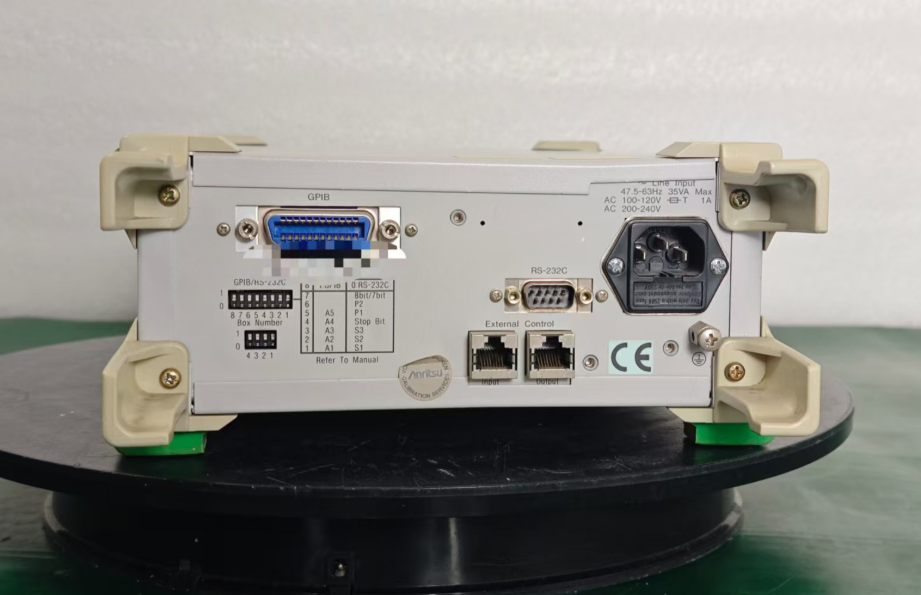

Key Performance SpecificationsLow Polarization-Dependent Loss (PDL): 0.03 dBp-pHigh Switching Repeatability: 0.003 dB (typical value)Wavelength Range: 1.2 to 1.65 μmSwitching Time: < 10 msInterfaces & ControlStandard Remote Interfaces: GPIB and RS-232CExternal Control: Can be controlled by the MT9810B Optical Test Set or the MW9076 Series OTDRAutomatic Measurement Systems: Suitable for constructing automated measurement systemsPhysical & Maintenance FeaturesOptical Adapters: Cleanable and replaceable optical adapters (supports FC, SC, ST, DIN, HMS-10/A types)Power Supply: 100-240 VAC, 50/60 HzMounting: 19-inch rack mountableWeight: Approx. 5 lbsApplication AreasIdeal for R&D and quality evaluation of transmission equipment and devices using EDFAs, such as trunk optical transmission systems, optical CATV analog transmission systems, and WDM transmission systems.
