arbitrary waveform generator

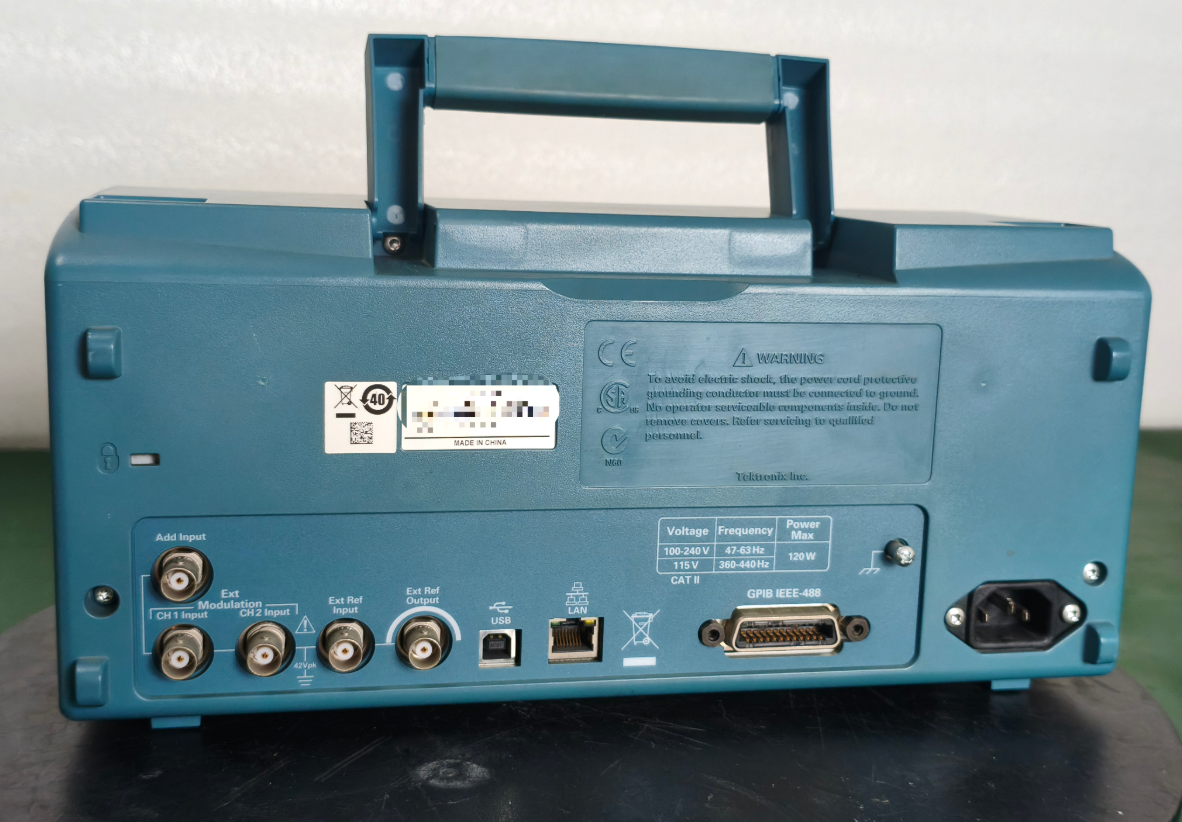

The AFG3102 is a 100 MHz, 2-channel arbitrary/function generator from the AFG3000 series. It is designed to offer high performance and versatility for a wide range of signal generation needs.Key Features & Specifications:CategorySpecificationChannels2Bandwidth (Sine)100 MHzOther WaveformsSquare/Pulse/Arbitrary up to 50 MHzSample RateUp to 1 GS/sVertical Resolution14 bitsWaveform Memory4 x 128K pointsAmplitudeUp to 10 Vp-p into 50Ω loadsStandard WaveformsSine, Square, Pulse, Ramp, Triangle, Sin(x)/x, Exponential Rise/Decay, Gaussian, Lorentz, Haversine, DC, NoisePulse FeaturesVariable edge timesModulationAM, FM, PM, FSK, PWMOther ModesSweep and BurstDisplay5.6-inch displayInterfaces & Additional Features:Front Panel: USB connector for easy waveform storage on a memory device.Rear Panel: USB, GPIB, and LAN interfaces.Intuitive Operation: Multi-language and intuitive operation saves set-up time.Note: This product is part of the AFG3000 series and may be discontinued ("No Longer Manufactured"). The newer model is the AFG3102C.
