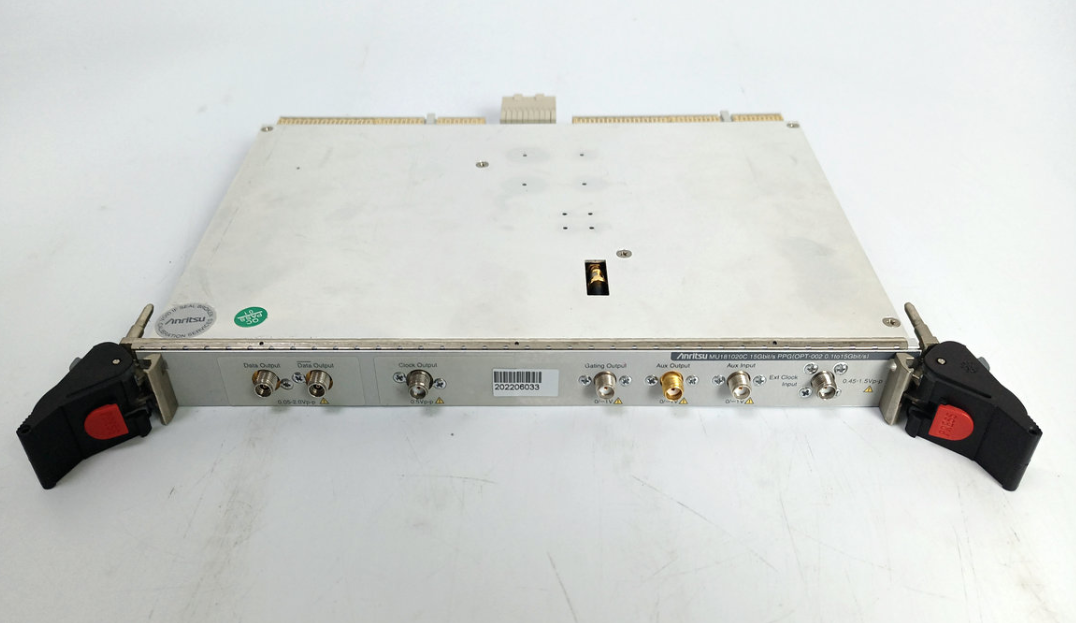

transmitter module

General FeaturesModular Design: A plug-in module for the Anritsu Signal Quality Analyzer mainframe.High Data Rates: Supports pattern generation at speeds up to 12.5 Gbit/s.Pattern Support: Capable of generating a wide variety of patterns for comprehensive testing, including PRBS (Pseudo-Random Binary Sequence), DATA, and Zero-Substitution patterns.Detailed Specifications (Typical for MU181020A/B Series)Operating Frequency Range: 0.1 to 12.5 GHz.Output Amplitude (with option): Variable from 0.5 to 3.5 Vp-p, adjustable in 2 mV steps.Cross Point Adjustment: The signal crossing point is adjustable, typically from 20% to 80% (or up to 90%), in steps as fine as 1% or 0.1%.Signal Quality: Features typical total jitter of 8 ps p-p and rise/fall times of approximately 20 to 25 ps.Output Control: Offers independent, variable output amplitude and offset control.Termination Flexibility: Output termination can be switched between AC and DC coupling, with selectable DC levels (e.g., GND, -2V, +1.3V, +3.3V)
