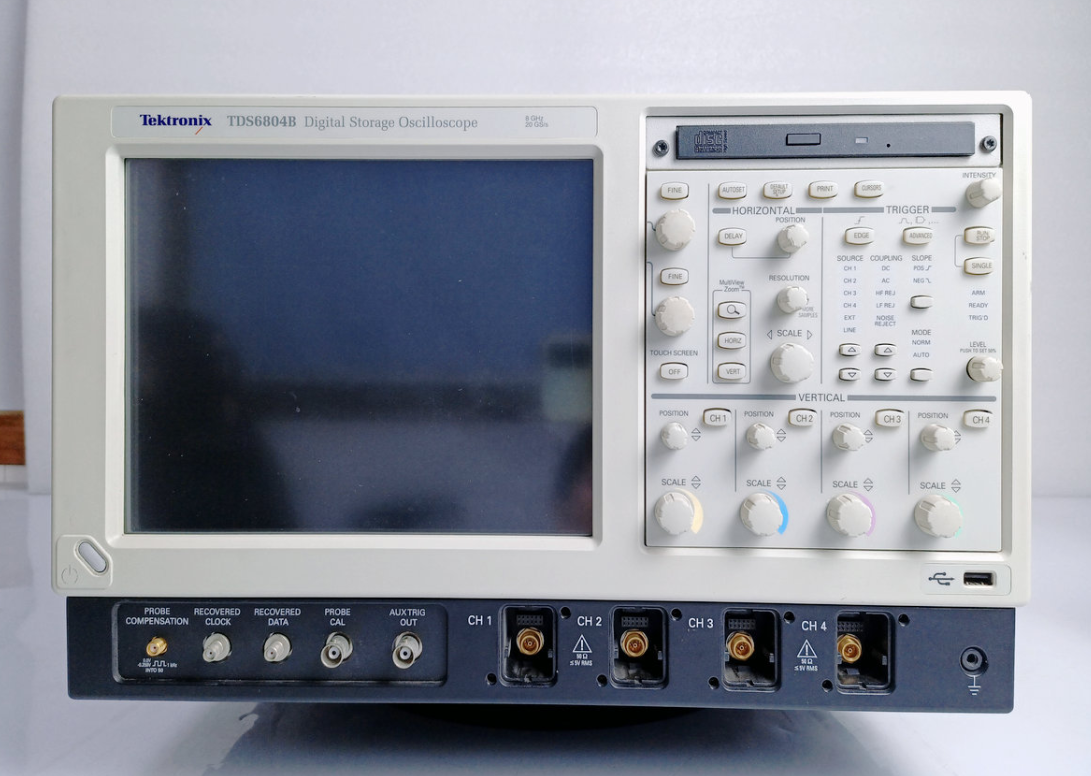

digital storage oscilloscope

Key Features1. High-Performance Acquisition8 GHz bandwidth with matched performance across any two channels using advanced Tektronix-proprietary DSP enhancementUser-selectable DSP filter on each channel provides magnitude and phase correctionSeparate digitizers for each channel ensure accurate timing measurements2. Pinpoint™ TriggeringMost flexible and highest performance triggering with over 1,400 combinations to address virtually any triggering situationSerial pattern triggering up to 3.125 Gb/s with 8b/10b protocol triggeringTrigger jitter as low as 1.5 ps RMSTrigger types include edge, logic, pulse, glitch, width, runt, pattern, state, video, serial, delay, event, and timeout3. Deep Memory & AnalysisUp to 32 Megasamples record length on all four channels simultaneouslyMultiView Zoom™ function for quick navigation and comparing up to four zoom areas at a timeSerial data analysis and compliance at rates of 6.25 Gb/s and above4. MyScope® Custom Control WindowsBuild personalized control windows with only the features you needSimple drag-and-drop process to create custom "toolboxes" in minutes5. OpenChoice® Software & ConnectivityMicrosoft Windows XP OS with built-in networking and analysisDual-processor system (2.8 GHz Pentium 4 and 583 MHz PowerPC)Front-panel CD-R/W, front-panel USB 2.0 port, and 1000BaseT network connectionConnectivity: USB, LAN, GPIB6. Measurement CapabilitiesPowerful built-in measurements including histograms, automatic measurements, eye pattern measurements, and measurement statisticsWaveform measurements: amplitude, frequency, period, rise time, fall time, delay, duty cycle, phase, RMS, peak-to-peak, etc.Acquisition modes: sample, envelope, peak-detect, high-resolution, waveform database, and average
